63 résultats trouvés pour Hallicrafters

Hallicrafters CB-20 (Mobile)

[Vous devez être [Vous devez être inscrit et connecté pour voir ce lien] et [Vous devez être inscrit et connecté pour voir ce lien] pour voir cette image]

Fréquence: 26.965-27.255 MHz
Canaux: 5
Modes: AM
Puissance: 5W
Année: 1967

Source: [Vous devez être inscrit et connecté pour voir ce lien]

[Vous devez être inscrit et connecté pour voir ce lien]

Hallicrafters TW-1000

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic20

Type: Portable Amateur HF
Frequency range RX: 180-400 / 540-1600 kHz / 1.8-8 MHz
31, 25, 19 and 16 m
Modulations: AM
Receiver system: Single conversion
IF-frequencies: 455 kHz
Antenna: Ingebouwde ferrietstaaf + Built-in telescopic
Dimensions (w×h×d): 43 × 30 × 20 mm (1.69 × 1.18 × 0.79 in)
Weight: 10 kg (22.1 lbs)
Manufactured: Between 1952 and 1956 in USA

Source: http://rigreference.com/en

Vidéo Hallicrafters TW-2000 Tube valve radio receiver

#Hallicrafters #TW-1000

Hallicrafters SX-115

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic19

Frequency range RX: 10-80 m + 9.6-10 MHz
Modulations: AM / CW / SSB
Dimensions (w×h×d): 406 × 267 × 406 mm (15.98 × 10.51 × 15.98 in)
Weight: 20 kg (44.1 lbs)
Manufactured: Between 1961 and 1964

Source: http://rigreference.com/en

#Hallicrafters #SX-115

Hallicrafters Hurricane SR-2000

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Both-o11

Frequency: 10-80 m
Filters: 2.1 kHz crystal lattice
Modulations: CW / SSB

Plus de détails ici:

Source: http://rigreference.com/en

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Inside10

#Hallicrafters #Hurricane #SR-2000

Hallicrafters Cyclone III SR-400A

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic17

Frequency: 10-80 m
Modulations: CW / SSB
RF-output: SSB: 550 W (PEP input), CW: 175 W (input)
Power requirements: Separate PSU
Features:
R.I.T.
ALC
Notch and CW filter
6-pole XTAL lattice filter
Noise blanker
VOX
Manufactured: Between 1969 and 1969 in USA

Source: http://rigreference.com/en

#Hallicrafters #Cyclone #III #SR-400A

Hallicrafters SR-150

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic16

Frequency range RX: 10-80 m
Modulations: CW / SSB
Receiver system: 19 tubes, 12DQ6B finals
RF-output: SSB: 150 W (PEP input), CW: 125 W (input)
Power requirements: Separate PSU (Mains or 12V DC option)
Dimensions (w×h×d): 381 × 165 × 330 mm (15.00 × 6.50 × 13.00 in)
Weight: 7.938 kg (17.5 lbs)
Manufactured: Between 1961 and 1963 in USA

Source: http://rigreference.com/en

#Hallicrafters #SR-150

Hallicrafters SR 75

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic15

Frequency range RX: 0.54.32 MHz
TX: 10, 11, 15, 20, 40 & 80 m
Receiver: Modulations AM / CW
Transmitter: Modulations CW
RF-output: 10 W
Dimensions (w×h×d): 324 × 178 × 197 mm (12.76 × 7.01 × 7.76 in)
Weight: 7.26 kg (16 lbs)
Manufactured: Between 1950 and 195x in USA

Source: http://rigreference.com/en
Le manuel (pdf) est ici: http://gmcotton.com/ham_radio/misc%20manuals/Hallicrafters/Hallicrafters_SR75%20HF%20Tranciever_Manual.pdf
#Hallicrafters #SR #75

Hallicrafters S-72

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic14

Frequency range RX: 0.54-31 MHz in four bands
Modulations: AM / CW
Receiver system: Single conversion, 8 tubes
IF-frequencies: 455 kHz
Power requirements: Mains (120 VAC) or batteries (90 & 7.5V DC)
Dimensions (w×h×d): 356 × 355 × 305 mm (14.02 × 13.98 × 12.01 in) with the removable cover installed
Weight: 6.35 kg (14 lbs)
Manufactured Between 1949 and 1951 in USA

Source: http://rigreference.com/en

#Hallicrafters #S-72

Hallicrafters S-38D ...

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic13

Frequency: 0.54-32 MHz in four bands
Frequency stability: Marginal
Tuning steps: Continuous tuning
Filters: L/C
Modulations: AM / CW
Sensitivity: Unpublished
Selectivity: Unpublished
Receiver system: 5 tubes, Single conversion, oscillating IF
IF-frequencies: 455 kHz
Audio output: 1 W
Impedance: 52-600Ω
Power requirements: Mains (AC or DC)
Current drain RX: 30 W @ 110 V AC
Dimensions (w×h×d): 330 × 190 × 225 mm (12.99 × 7.48 × 8.86 in)
Weight: 5 kg (11 lbs)
Manufactured: Between 195x and 195x in USA

Source: http://rigreference.com/en

#Hallicrafters #S-38D

Hallicrafters FPM 300 MKII

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic12

Frequency: 10-80 m
Modulations: CW / SSB
RF-output: 100 W
Power requirements: 13.8V DC
Manufactured: Between 1972 and 1974 in USA

Source: http://rigreference.com/en

#Hallicrafters #FPM #300 #MKII

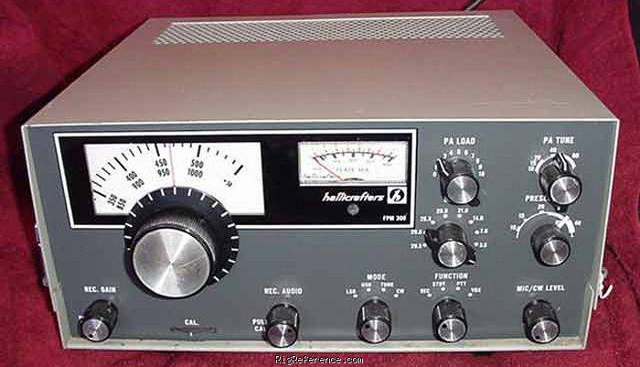

Hallicrafters FPM 300

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic11

Frequency range RX: 10-80 m
Modulations: CW / SSB
RF-output: 100 W
Impedance: 50/75 Ω
Manufactured Between 1972 and 1974 in USA

Source: http://rigreference.com/en

#Hallicrafters #FPM #300

Hallicrafters FPM 200

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 Hallic10

Type: Amateur HF Transceiver
Modulations: AM / CW / SSB
RF-output: 100 W
Manufactured: Between 1959 and 196x in USA

Source: http://rigreference.com/en

#Hallicrafters #FPM #200

Hallicrafters Sky Champion S-20R

Tag hallicrafters sur La Planète Cibi Francophone - Page 3 The-ha10

Frequency range RX: 0.55-44 MHz
Modulations: AM / CW
Receiver system: Single-conversion superheterodyne, 9 tubes
IF-frequencies: 455 KHz
Impedance: 450 Ω
Power requirements Mains 110-120 V AC (110-250 V AC option)
Dimensions (w×h×d): 470 × 216 × 238 mm (18.50 × 8.50 × 9.37 in)
Weight: 14.5 kg (32 lbs)
Manufactured: Between 1939 and 1945 in USA

Source: http://rigreference.com/en

#Hallicrafters #Sky #Champion #S-20R
