Mirage MX-25 (Mobile) Empty Mirage MX-25 (Mobile)

Message par Dundee33 Dim 30 Avr 2017, 09:43

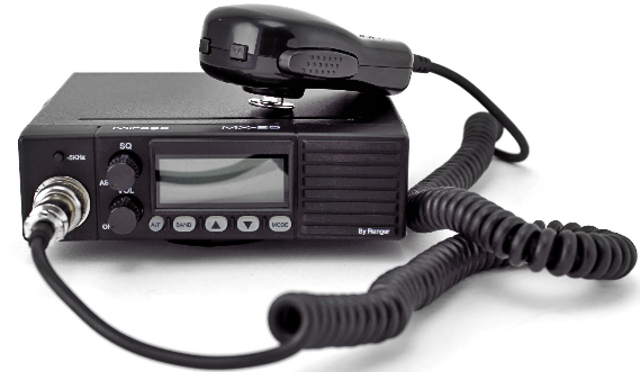

Mirage MX-25 (Mobile) Mirage10

10 Meter Mobile Amateur Radio
Compact Size
AM/FM
20+ Watts
Front Panel 6 Pin Mic Jack
Plus de détails ici:
Channel Selectors - Up Down Buttons
Squelch - Auto Squelch
On/Off Volume Control
Mode Selector
Band Selector
Mode Button for Selecting Multiple Settings Modes
-5KHz Button
LCD Display - 7 Colors with Dimmer
Specifications:
Mirage:
Model: Mirage MX-25
Channels: 120
Frequency Range: 28.315 to 22.655 MHz
Emission: AM/FM
Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
Frequency Stability: 0.001%
Temperature Range: -20C to +50C
Antenna Impedance: 50 Ohms
Antenna Connectors: Standard SO-239 type
Input Voltage: 13.8V DC
Size: 1.6 " (H) x 5.5 " (W) x 5.9 " (D)
Weight: 2.21 lb.
Transmitter:
RF Power Output: AM: 10W; FM: 10W
Spurious Emission: > -60 dB
Audio Distortion: 10%
Frequency Response: 300 to 2500 Hz
Microphone: Condenser type Mic; with push-to-talk switch, up/down buttons, and coiled cord
Receiver:
Sensitivity for 10 dB (S+N)/N: FM: 0.5 uV
Sensitivity for 20 dB (S+N)/N: AM: 1.0 uV
Squelch Sensitivity: < 0.5 uV
Image Rejection: > 60 dB
Audio Power Output: 3W @ 10% Distortion
Audio Response: 300 to 2500 Hz
Contents:
10 Meter Mirage MX-25 Radio
6 Pin Condenser Microphone
Hard Wired DC Power Cord
Mounting Bracket with Hardware
User's Manual
Color: Black

Source USA: https://www.bobscb.com/shop/home.html

#Mirage #MX-25
